Wholesale wire cutting and stripping machine
Description
Wholesale wire cutting and stripping machine
This device is designed to strip the wire and also create a feed.
Wire length, processing on both sides min. | 1 mm |
---|---|
Wire length max. | 800000 mm |
Strip lengths, full stripping side 1 max. | 5 mm |
Strip lengths, full stripping side 2 max. | 5 mm |
Strip lengths, partial stripping/multiple stripping max. | 999.9 mm |
Wire outer diameter max. | 35 mm |
Automatic conductor detector | Optional |
Wire cross section min. | 2.0 mm² |
Wire cross section max. | 150 mm² |
Pieces max. | 99999 |
Wire draw-in speed max. | 4.8 m/s |
Sequence processing (number of wires) | with TopWin |
Length accuracy | Repetition accuracy: ± (0.2% + 1.0) |
Drive system | Double rollers or belt drive |
Wire guide, side 1 | Swivel guide |
Wire guide, side 2 | Fixed guide |
Noise level | < 80 dB |
Electrical connection | 115/230VAC±10%, 50/60Hz, 600VA |
Wire protection/ground | 16 |
Nominal output (average) | 360 VA |
Compressed-air connection | 5-8 bar |
Compressed-air quality | oiled or unoiled, not alternating |
Air consumption | 20 l/min |
Operating pressure | 6 bar |
Weight | 275 kg |
Dimensions/length | 1090 mm |
Dimensions/width | 890 mm |
Dimensions/height | 1435 mm |
Installation location | Level, stable and vibration-free support surface. |
Size of production table (L x W) min | 630 x 690 mm |
Load capacity of production table min. | 75 kg |
Humidity, non-condensing | 90 % |
Temperature operation | 10-40 °C |
communication | TCP/IP, Serial, Modbus, I/O, SMEMA standard. |
Function | Cutting, Cut Pulled Strands, Precision Cut, Full Strip, Half Strip, Multi Counductor Cable, Flat Cable / Notching, Duble Sheath Cable, Intermediate Strip, Hot Stamp Marking, Inkjet Markalama, Sequence,Ability to determine the number of production ,Ability to scale the overall speed of the device,Ability to calibrate the cable coating removal,Able to save 200 different programs. |
Stages of the work cycle

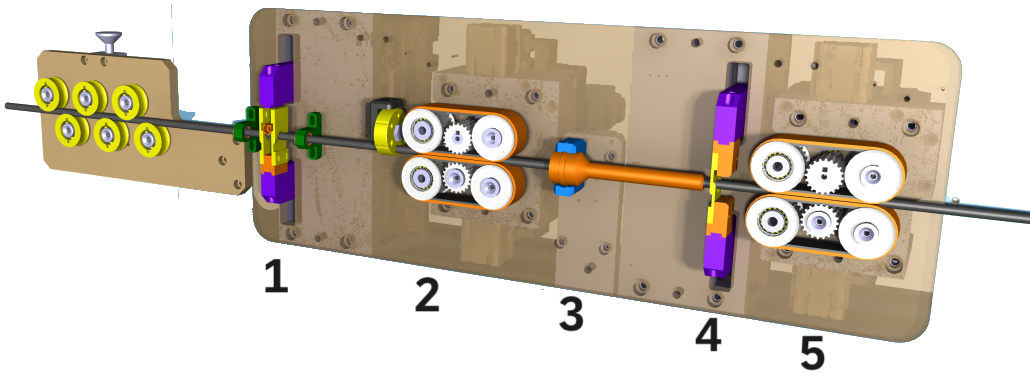

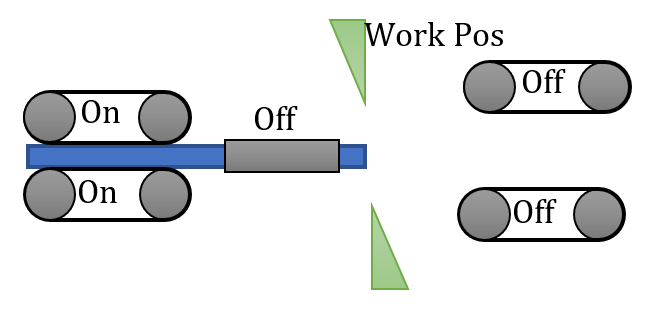

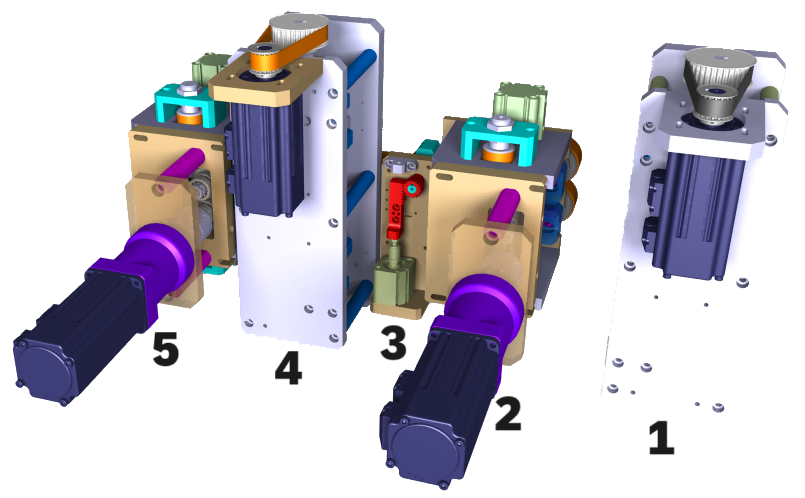

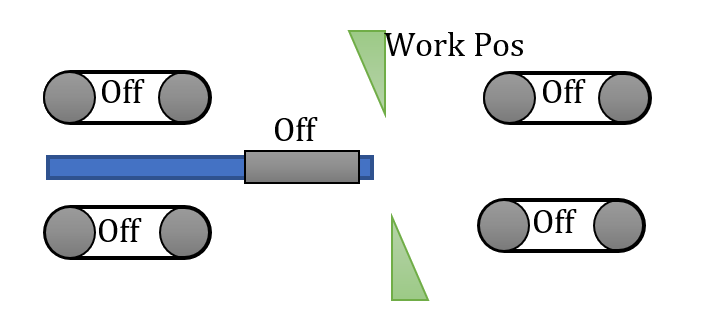

- Fade Station: Create fade.
- Move Cable: Insert cable and cable forward and backward movement.

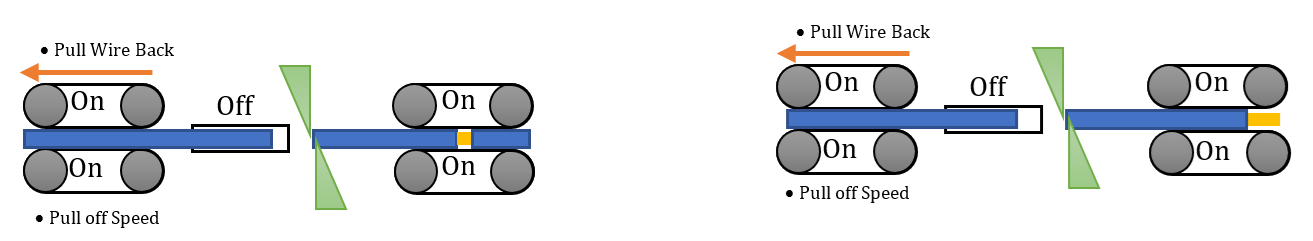

- Jack Redirect: Cable reverse function.

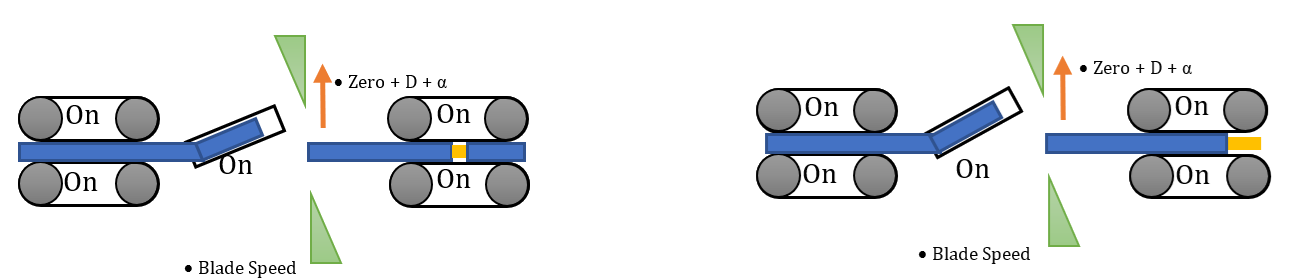

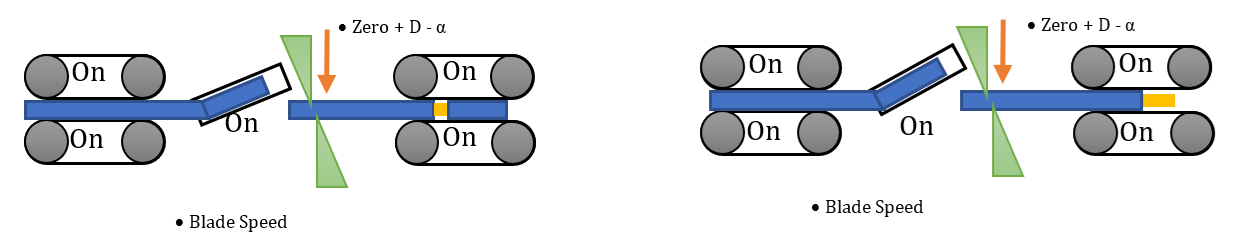

- Cutter Function: Strip and cutting cable.
- Move Cable: Cable forward and backward movement and eject cable.
STEP















Fade Process
