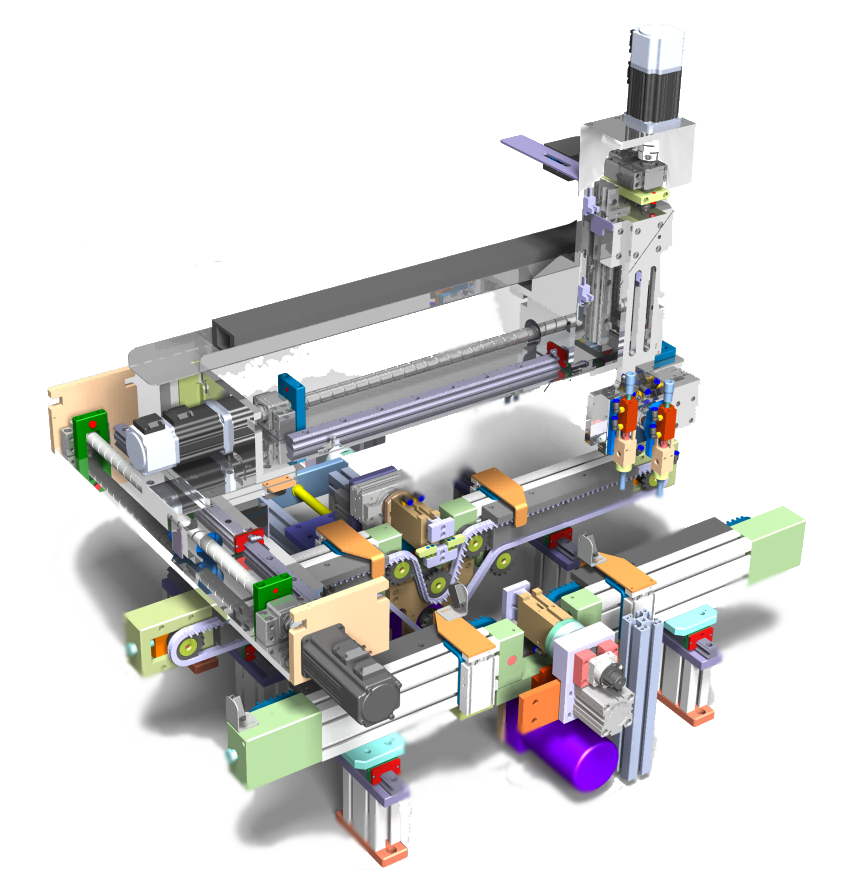

X, Y, Z, and three-axis movements enable accurate selective spraying of various PCB boards away from uncoated areas such as connectors.
Accurately achieve a variety of circuit board selective area spraying.
It can realize multi-track spraying such as spot coating, line spraying and curve spraying, and can complete the spraying process of high-density and complex circuit boards.
It can effectively and evenly coat the edge of the device, eliminating the shadowing effect of spraying.
The system accuracy is ±0.01 mm.
With high speed, high reliability, high stability of the drive and control system.

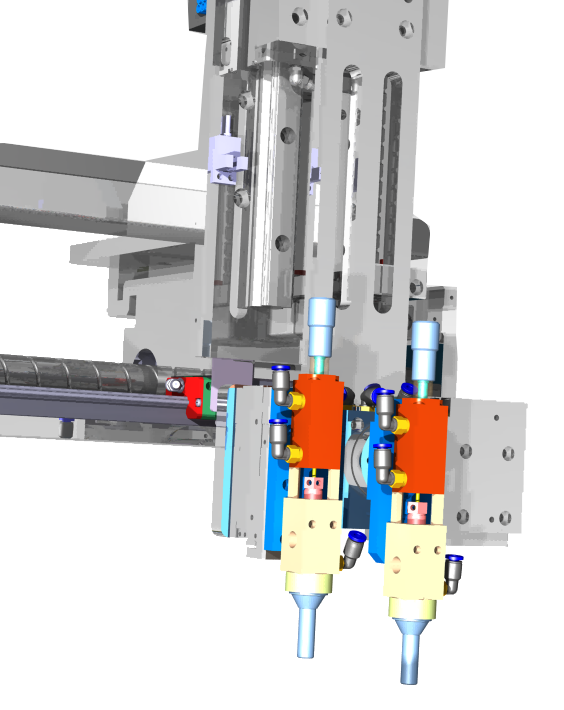

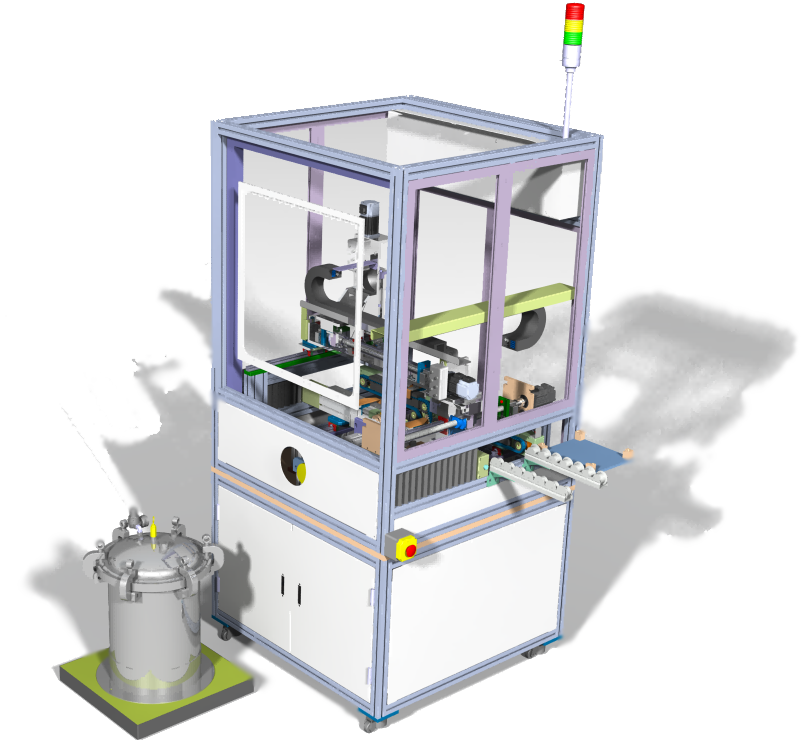

There are three types of precision nozzles available for customers to choose from. The standard equipment also carries two nozzles. This two nozzles can realize automatic switching and cooperation of spraying operations, and can achieve high-density and complex circuit board spraying and dispensing processes.
The device is equipped with intelligent automatic widening and narrowing functions (the width of the input board can be adjusted automatically).
Programming mode: software program with data input automatic programming; handle manually enter any track automatic programming mode
Software functionality
User friendly software
CNC and PLC code capability
Ability to adjust point by point
Ability to spray interpolation
Save more than 100 patterns
Save more than 100 programs
The ability to call programs and patterns for each project
Ability to perform multiple spraying nozzles
Point-to-point control of spraying
Product input-output / input-return capability
Ability to connect with other equipment
Communication with Datais SQL Server and barcode reader
Vision control capability
The ability to rotate the PCB
Specifications
PCBA Size: Min. 60(W) x 60(D)mm, Max. 360(W) x 350(D)mm with Standard Platform Max. 460(W) x 350(D)mm allowable with 2 Stepped (Extra) Platform.
PCBA Thickness: 0.8(mm) – 4.0(mm)
PCBA Edge Clearance: Min of 3.5(mm) both sides
PCBA Pass-Line Height: FL(+)900±50(mm)
PCBA Transfer-Conveyor Running Speed:Max. 300(mm/sec) / adjustable by STEP motors Motorized Width-Adjustment in RS25 Transfer-Conveyor / by STEP motor
Transfer-Conveyors: Run left to right
Transfer-Conveyors: Front-Rail Fixed
Communication: Compatible with SMEMA Interface, Spec. 1.2
